KVM-HV Series
| Operating System | Compressed Air |
|---|---|
| Speed Range | 0 – 17.000 rpm |
| Operating Pressure | 4,9 – 6,9 PSI* |
| Air Quality | Class 5.4.4 |
| Operating Temperature | -10°C / +60°C |
| Vibration Type | Circular |
| Industry | Building & Construction<br/> |

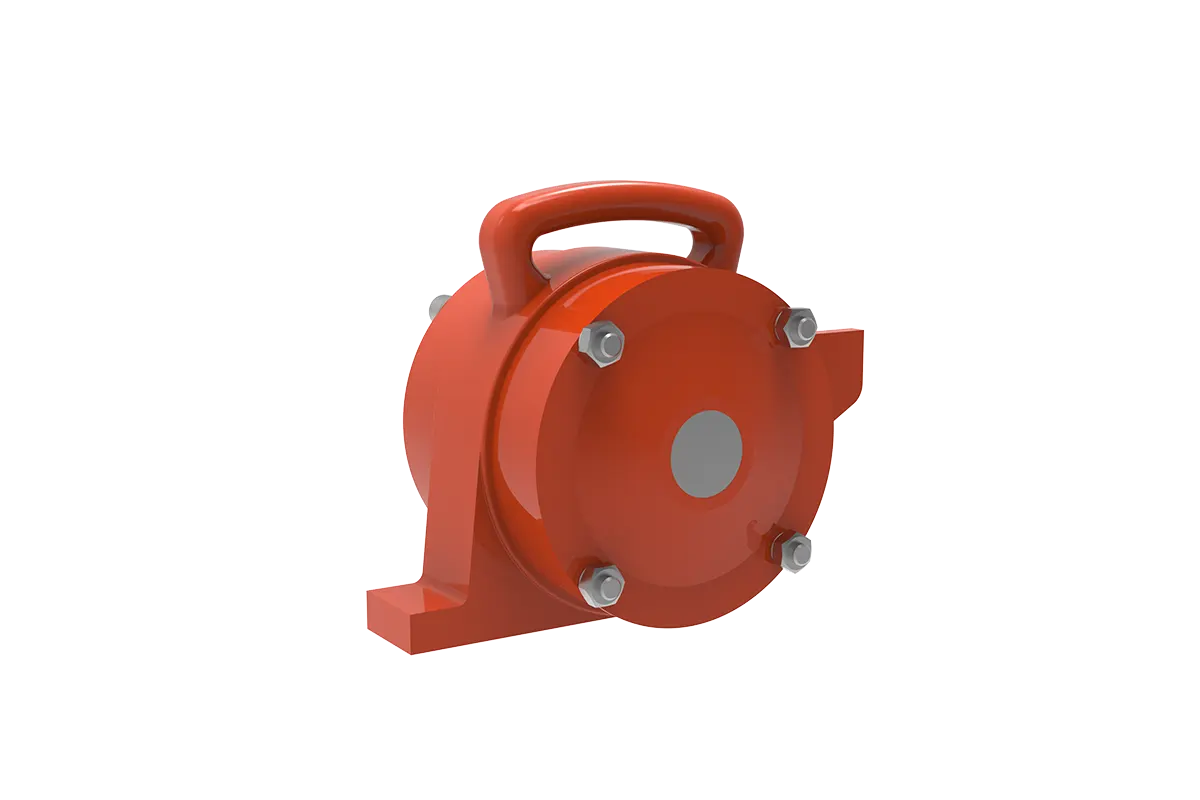

Pneumatic Concrete Formwork Vibrators
Kem-P KVM-HV Series Pneumatic Concrete Formwork Vibrators are developed to generate controlled vibration in concrete formwork, helping to ensure uniform distribution and compaction of concrete within the mold. Operating with compressed air, these pneumatic vibrators offer a practical solution for industrial applications that require vibration without an electrical power supply.
The KVM-HV Series is designed for use in concrete formwork, column and beam production, and precast concrete manufacturing lines. Its circular vibration characteristics help support uniform concrete distribution within the mold. By reducing air voids during vibration, the system contributes to improved concrete compaction and a more consistent surface finish.
With an operating speed range of 0–17,000 rpm, the KVM-HV Series provides a compact pneumatic solution for industrial applications requiring high-speed circular vibration. Its durable housing and mounting structure make it suitable for demanding operating environments, including concrete compaction, mold vibration, and material flow applications.
Applications
Applications
Concrete Formwork • Precast Concrete • Columns and Beams • Heavily Reinforced Formwork • Steel Hoppers • Aggregate Screening Systems
Technical Features
Pneumatic Operation • 0–17,000 rpm • Circular Vibration • 4.9–6.9 PSI Operating Pressure • Air Quality Class 5.4.4 • -10°C to +60°C Operating Temperature
Advantages
No Electrical Power Required • Easy Operation • Easy Installation • High Operating Speed • External Formwork Vibration • Suitable for Hard-to-Reach Concrete Areas
KVM-HV Series Technical Drawings & Specifications
Explore the centrifugal force, operating speed, motor power, electrical ratings, and other technical specifications of Kem-P vibration motors by model in the table below.
| 3D Data | Teknik Veri Data Sheet | Model | Dış Çap (Inch) | Dış Çap (mm) | Ağırlık (LBS) | Ağırlık (Kg) | Basınçlı Hava (PSI) | Basınçlı Hava (BAR) | Basınçlı Hava (CFM) | Basınçlı Hava (m³/dk) | Merkezkaç Kuvveti / Frekans (kg) | Merkezkaç Kuvveti / Frekans (Hz) | Merkezkaç Kuvveti / Frekans (VIBR.min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  | KVM-HV6 | 4,65 | 118 | 13,2 | 6 | 71 | 4,9 | 35,31 | 1 | 917,7 | 150 | 9.000 |
| 100 | 6,9 | 40,61 | 1,15 | 180 | 10.800 | ||||||||
| | KVM-HV8 | 5,82 | 148 | 17,6 | 8 | 71 | 4,9 | 40,61 | 1,15 | 1.223,60 | 150 | 9.000 |
| 100 | 6,9 | 45,9 | 1,3 | 180 | 10.800 | ||||||||
| | KVM-HV10 | 5,82 | 148 | 22 | 10 | 71 | 4,9 | 45,9 | 1,3 | 1.529,50 | 150 | 9.000 |
| 100 | 6,9 | 51,2 | 1,45 | 180 | 10.800 | ||||||||
| | KVM-HV14 | 6,3 | 160 | 30,8 | 14 | 71 | 4,9 | 51,2 | 1,45 | 2.855,20 | 150 | 9.000 |
| 100 | 6,9 | 58,27 | 1,65 | 180 | 10.800 | ||||||||
| | KVM-HV16 | 6,61 | 186 | 35,2 | 16 | 71 | 4,9 | 56,5 | 1,6 | 3.263,10 | 150 | 9.000 |
| 100 | 6,9 | 63,56 | 1,8 | 180 | 10.800 | ||||||||
| | KVM-HV20 | 6,61 | 186 | 44 | 20 | 71 | 4,9 | 60,03 | 1,7 | 4.078,80 | 150 | 9.000 |
| 100 | 6,9 | 67,09 | 1,9 | 180 | 10.800 | ||||||||
| | KVM-HV24 | 6,61 | 186 | 48,5 | 22 | 71 | 4,9 | 63,93 | 1,7 | 6.346,70 | 150 | 9.000 |
| 100 | 6,9 | 71,45 | 1,9 | 180 | 10.800 |
| 3D Data | Teknik Veri Data Sheet | Model | A | B | ØC | D | E | F | G | L | M | N | P | Q | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | KVM-HV6 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV8 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV10 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV14 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV16 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV20 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
| | KVM-HV24 | 247 | 197 | 166 | 175,5 | 108 | 83 | 144 | 240,5 | 83 | 51,5 | 75 | 10 | 83,5 | 31,5 |
