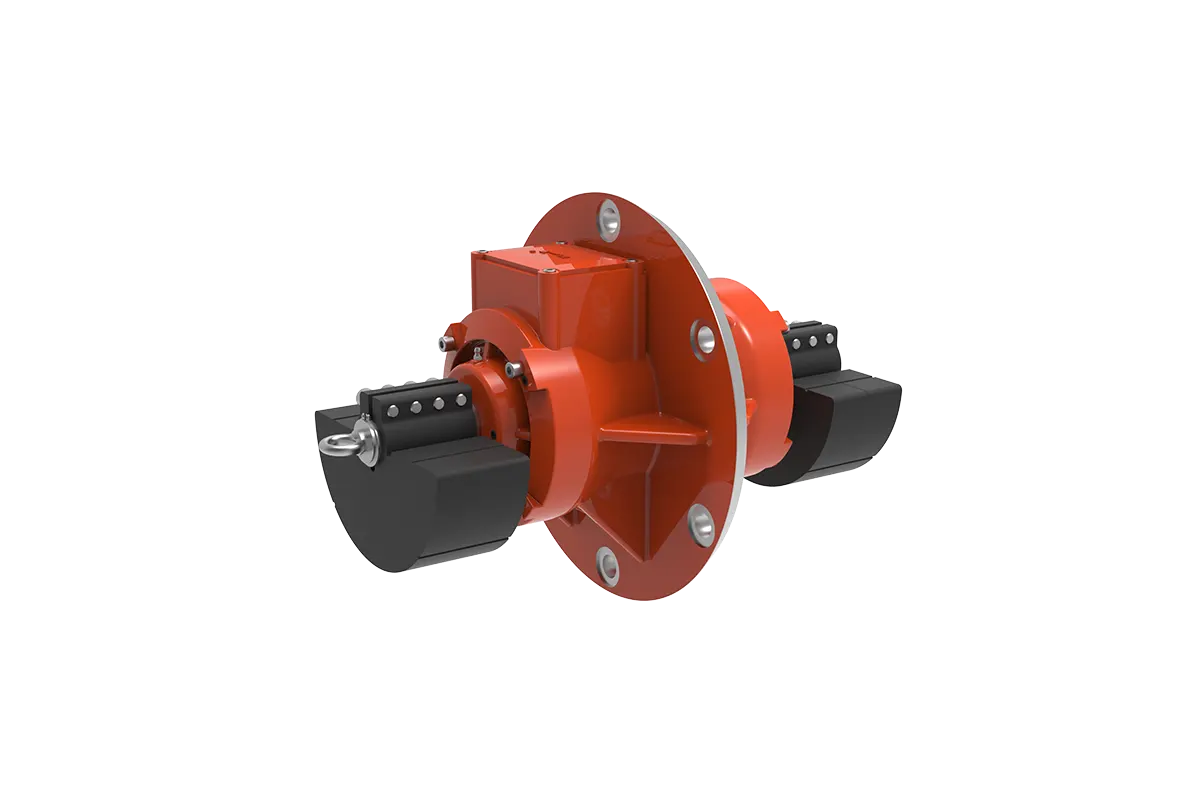

KVM-FO Series

Flange-Mounted Vibration Motors

Kem-P KVM-FO Series Flange-Mounted Vibration Motors are developed for industrial applications requiring the transmission of vibration to machinery and process equipment through a flange connection. Featuring 2-, 4-, and 6-pole configurations with operating speeds of 3,000, 1,500, and 1,000 rpm, the series offers centrifugal force options ranging from 175 to 9,000 kgf.

The KVM-FO Series can be used in vibrating process machinery, screens, conveyors, drying, washing, polishing, and glazing systems, offering a range of application possibilities. Its flange-mounted design provides a solution for applications requiring the vibration motor to be integrated directly into the equipment structure. Designed for industrial operating conditions, the series features an operating power range of 0.22–11.00 kW, IP66 mechanical protection, Class H insulation, and high-quality bearings. Different voltage options and an optional PTC temperature sensor are available to suit specific process and operating requirements.

Applications

Vibrating Process Machinery • Drying Systems • Washing Systems • Polishing Machines • Glazing Systems • Vibrating Screens

Technical Features

2 / 4 / 6 Poles • 3,000 / 1,500 / 1,000 rpm • 175–9,000 kgf • 0.22–11.00 kW • IP66 Protection • Class H Insulation

Advantages

Flange-Mounted Design • Wide Operating Range • IP66 Protection • Class H Insulation • High-Quality Bearings • Optional PTC Temperature Sensor
